Flight Medical Inc.
SKU:K100-F60T-M

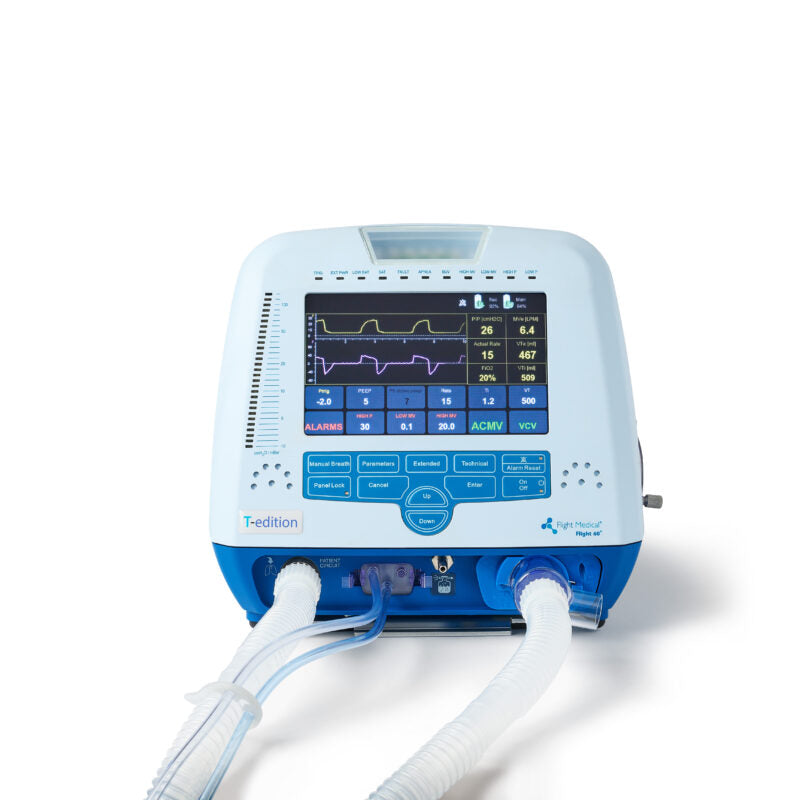

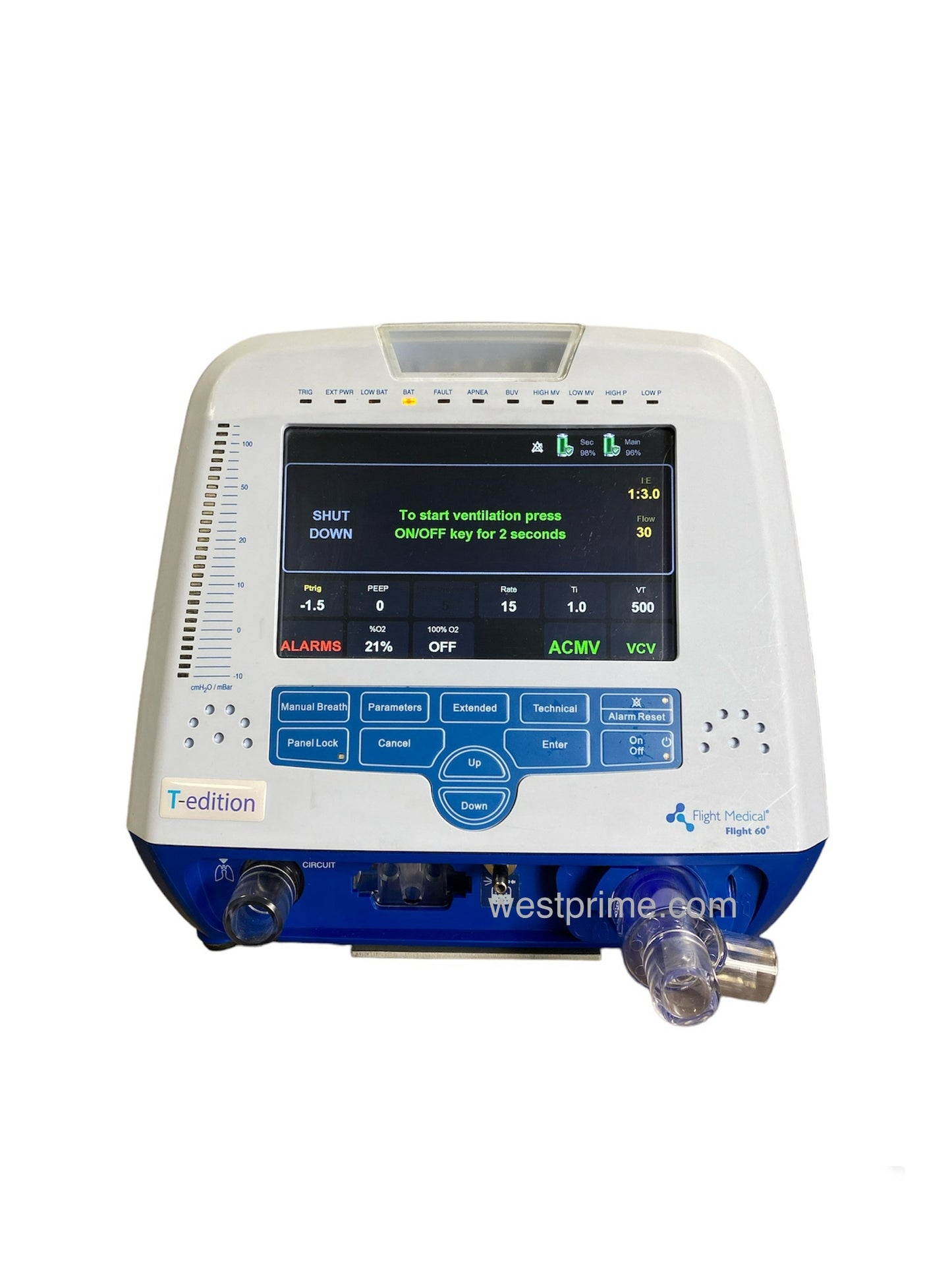

Flight 60T Ventilator - Turbine Edition
Flight 60T Ventilator - Turbine Edition
Reliable Ventilation across the Spectrum of Care
Independent Ventilation
The Flight 60 is a fully independent, turbine or manifold based ventilator. The worldwide-deployed Flight 60 is both a volume control and pressure-control ventilator for invasive and non-invasive ventilation, being a cost-effective, value driven solution for reliable ventilation across the spectrum of care.
Transport and EMS
For critical care transport beyond hospital walls, emergency readiness, or responding to mass casualty incidents, the Flight 60 is your dependable ally. This robust ventilator supports the full spectrum of ventilation needs. Its self-sufficient design empowers healthcare professionals to provide care in any setting, optimizing both oxygen and power consumption for prolonged, uninterrupted support.
Features and Benefits
Features and Benefits
- Invasive & noninvasive ventilation with high leak compensation
- Single & dual patient circuit limb
- Can be used from pediatric to adult settings
- High pressure and low flow oxygen
- Excellent NIV performance
- Synchronized nebulizer and High Flow Oxygen Therapy (HFOT)
- High acuity, turbine-based, portable ventilator with over 200 LPM of flow- Meets demands of high acuity patients (220 LPM max.)
- 5.5 Kg weight
- Minimal preventative maintenance- due 5 years or 25,000 hours- Low Cost of Ownership
- Free lifetime software upgrades with WestPrime Healthcare: modes, features etc.- Keeps Units Clinically Relevant

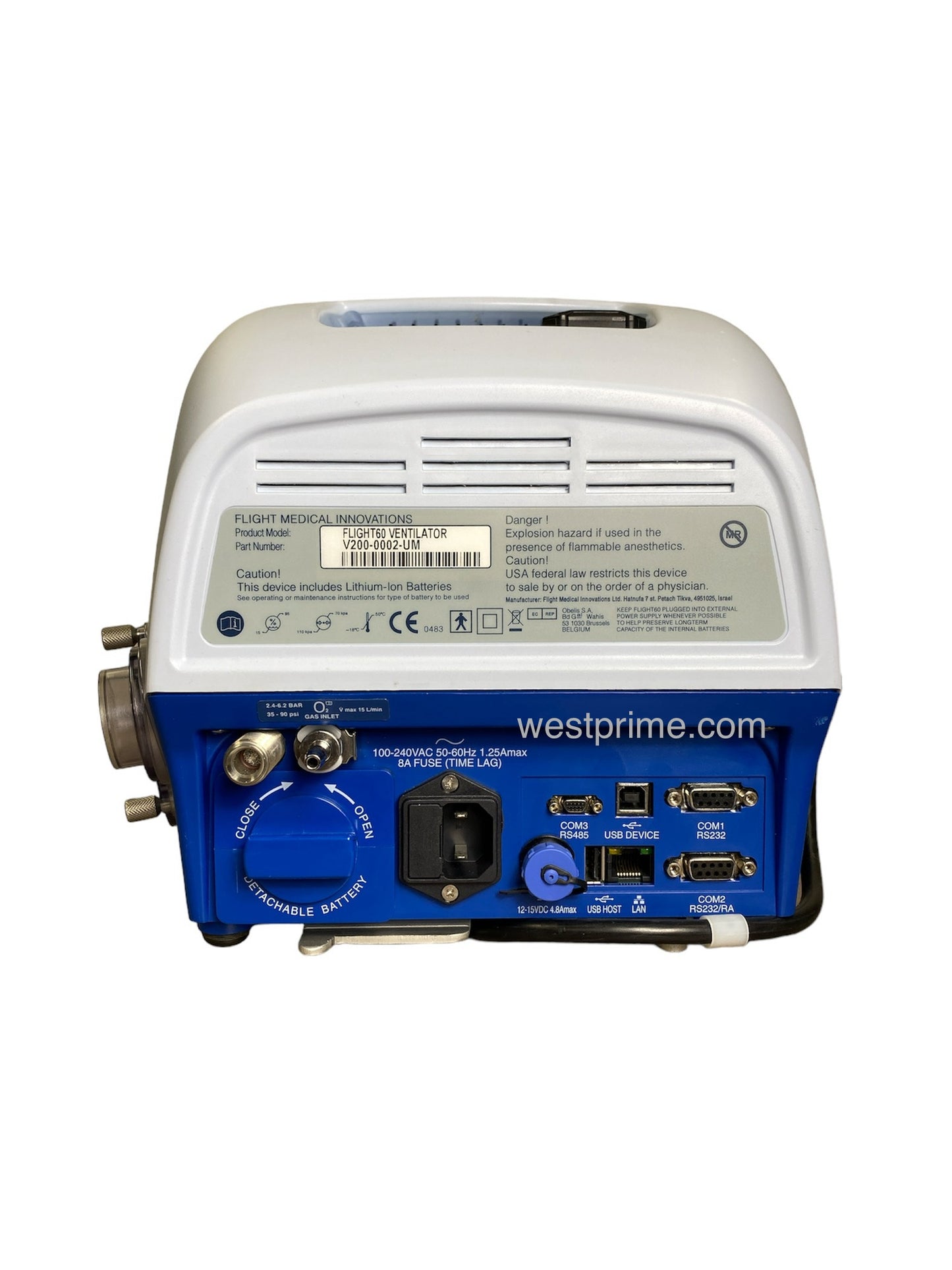

- 2 Communication ports- External Monitors/External Alarms- For early detection of patient deterioration
- Event Log- tracks up to 1000 events (downloadable)- Useful for sentinel events
- Advanced invasive (e.g., Bi-Lev/APRV, PRVC-CMV/SIMV) and non-invasive modes of ventilation
- Smooth transition of Invasive/Non-invasive therapies & uses same ventilator circuit
- Volume & Pressure modes/ flow & pressure triggers/ lung mechanics/ advanced monitoring
- NIV leak compensation-Up to 60 l/min
- NIV can be delivered in any mode- allowing patients to be masked until they can be intubated
- Uses any non-vented NIV mask or patient circuit
Uses either dual or single limb patient circuits - Works with any oxygen source- 50 psi/tanks/concentrators/low flow (1-15 lpm) applications
- Up to 12 hours of continuous battery life with “hot swappable” batteries and power saving mode (automatic)
- Splash-proof and can be easily deployed to any environment without a gas source
- Can treat any patient 5.5 Kg to adult (30 ml lowest – 2,200 ml tidal volume range)

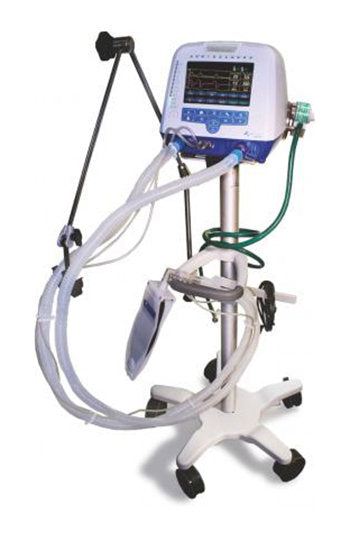

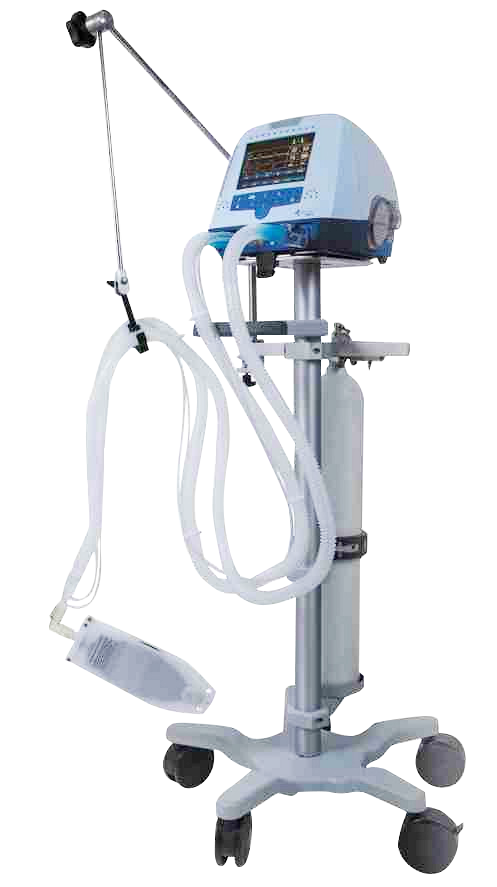

- Customized set-up kits and transport accessories (e.g., bedrail/wheelchair mount) available
- Easy to use 5 presets & quick start menu- for fast/efficient patient weaning
Specifications
Specifications
Product Experts and Specialist
Login to place your order or contact one of our specialists for assistance.
Hours of Operation
Contact Information
Training Videos
Introduction
Topics covered:
Ventilator Setup
Topics covered:
- Attach Patient Circuits
- Connect Oxygen Flow
- Turn the Ventilator On
- Perform a Circuit Test
Basic Operation
Topics covered:
- Switch on the Ventilator
- Change Parameters
- Initiate Ventilation
- Terminate Ventilation & Switch Off
Settings and Modes
Topics covered:
- Parameters Screen
- Extended Screen
- Volume Guarantee
- SIGH
- Technical Screen
- Manual Breath
- Panel Lock
