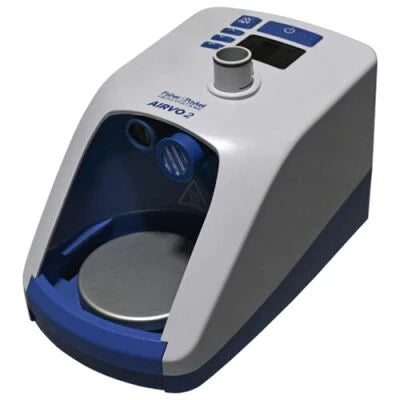

Fisher & Paykel AIRVO 2 is the ultimate In-Home Humidified High Flow Therapy System that is designed for the treatment of spontaneously breathing patients who benefit from high flow, warmed, and humidified air AIRVO 2 contains an integrated flow generator that delivers high flow warmed humidified respiratory gases to spontaneously breathing patients through a variety of patient interfaces. Airvo 2 has an adjustable flow from 2 - 60 L/min, depending on the patient interface, and is suitable for hospitals and long-term care facilities.
Model: PT101US
Features and Benefits

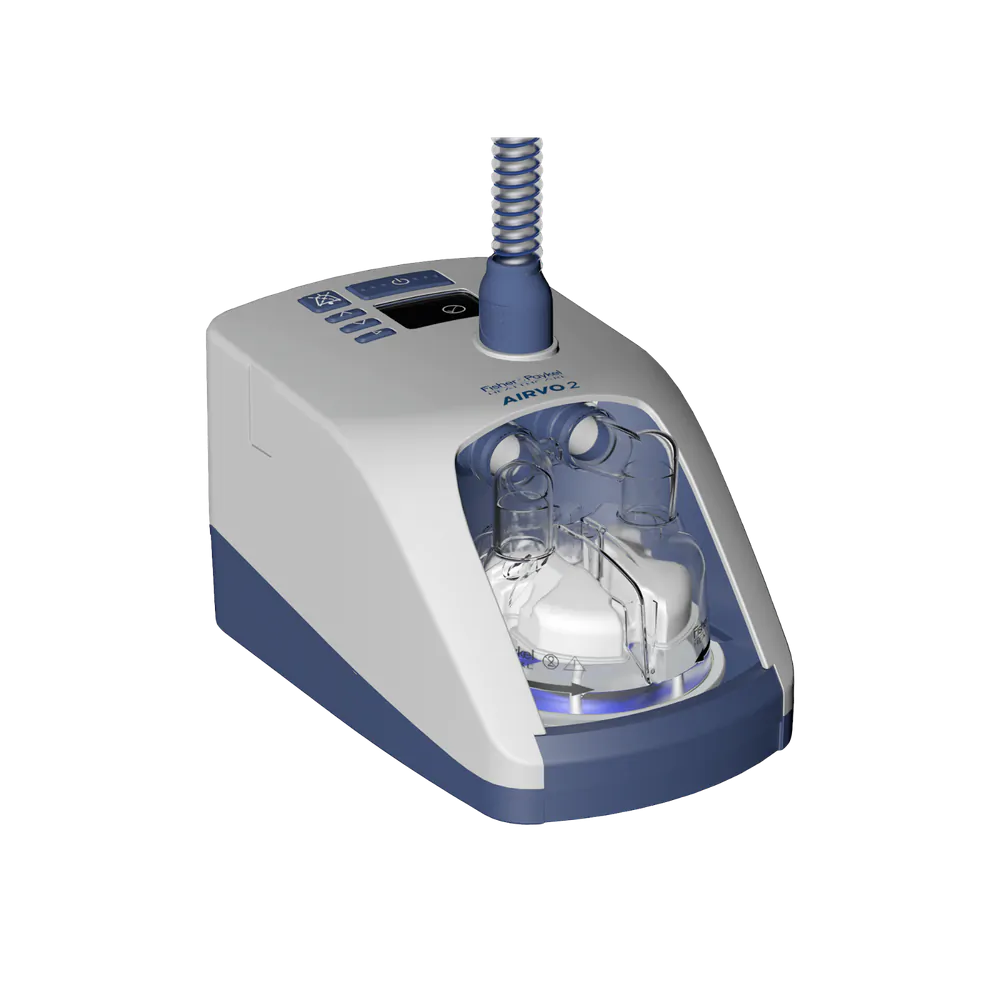

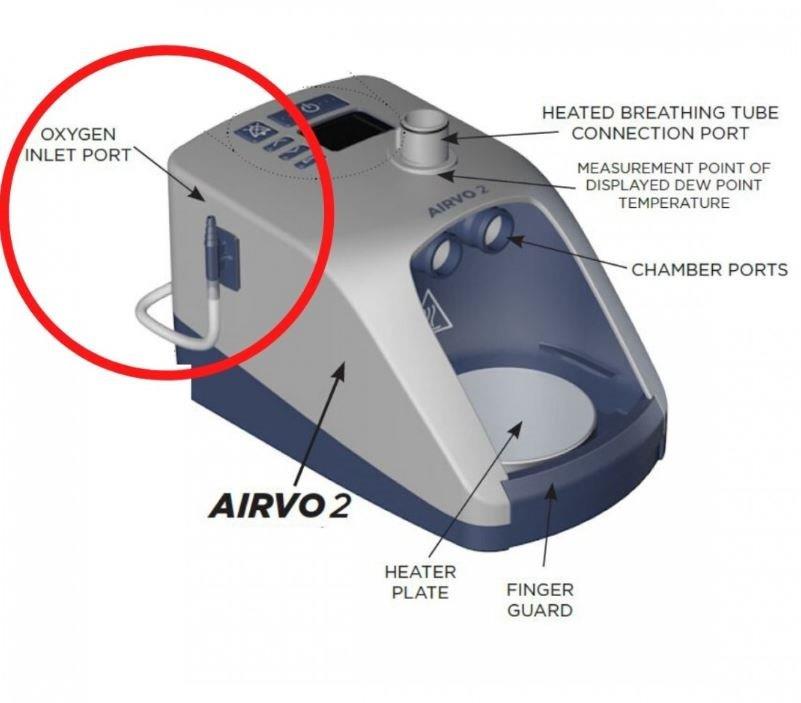

Dual spiral heated breathing tube with an integrated temperature sensor

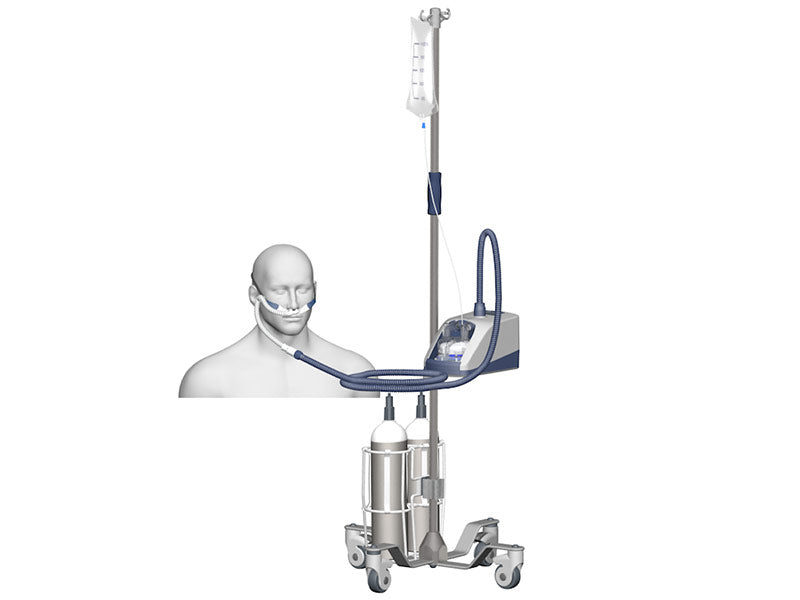

Can be used with Optiflow nasal cannula interfaces as well as direct-connect tracheotomy and mask interfaces
Oxygen from a concentrator or cylinder can be added
Built-in ultrasonic analyzer requires no calibration, service, or replacement
Adjustable temperature and flow settings
Designed for simple setup, use, and cleaning
Dimensions
Height: 11.6" (29.5 cm)
Width: 6.7" (17 cm)
Depth: 6.9" (17.5 cm)
Weight: 4.8 lbs (2.2 kg)
General
Supply frequency: 50-60 Hz
Supply voltage/current: 100-115 V 2.2 A (2.4 A max†); 220-240 V 1.8 A (2.0 A max)
Sound pressure level: Alarms exceed 45dbA @ 1 m
Auditory alarm pause: 115 seconds
Expected service life: 5 years
Serial port: The serial port is used for downloading product data, using F&P Infosmart software.
Warm-up time: 10 minutes to 31 °C (88 °F), 30 minutes to 37 °C (98.6 °F) using a
MR290 chamber with flow rate of 35 L/min and starting temperatur e 23 ± 2 °C (73 ± 3 °F)
Target temperature settings: 37, 34, 31 °C
Performance
Humidity performance
>33 mg/L at 37 °C target
>12 mg/L at 34 °C target
>12 mg/L at 31 °C target
Maximum temperature of delivered gas: 43 °C (109 °F) (in accordance with ISO 80601-2-74)
Maximum surface temperature of applied parts: 44 °C (111 °F) (in accordance with ISO 80601-2-74)
Flow range (default): 10-60 L/min
Flow range (Junior Mode): 2-25 L/min
Maximum oxygen input: 60 L/min
Oxygen analyzer accuracy: < ± 4 % (within the range 25-95% O2)
Operating conditions: 18-28 °C (64-82 °F), 30-70% RH
