Fisher & Paykel

SKU: R301-205

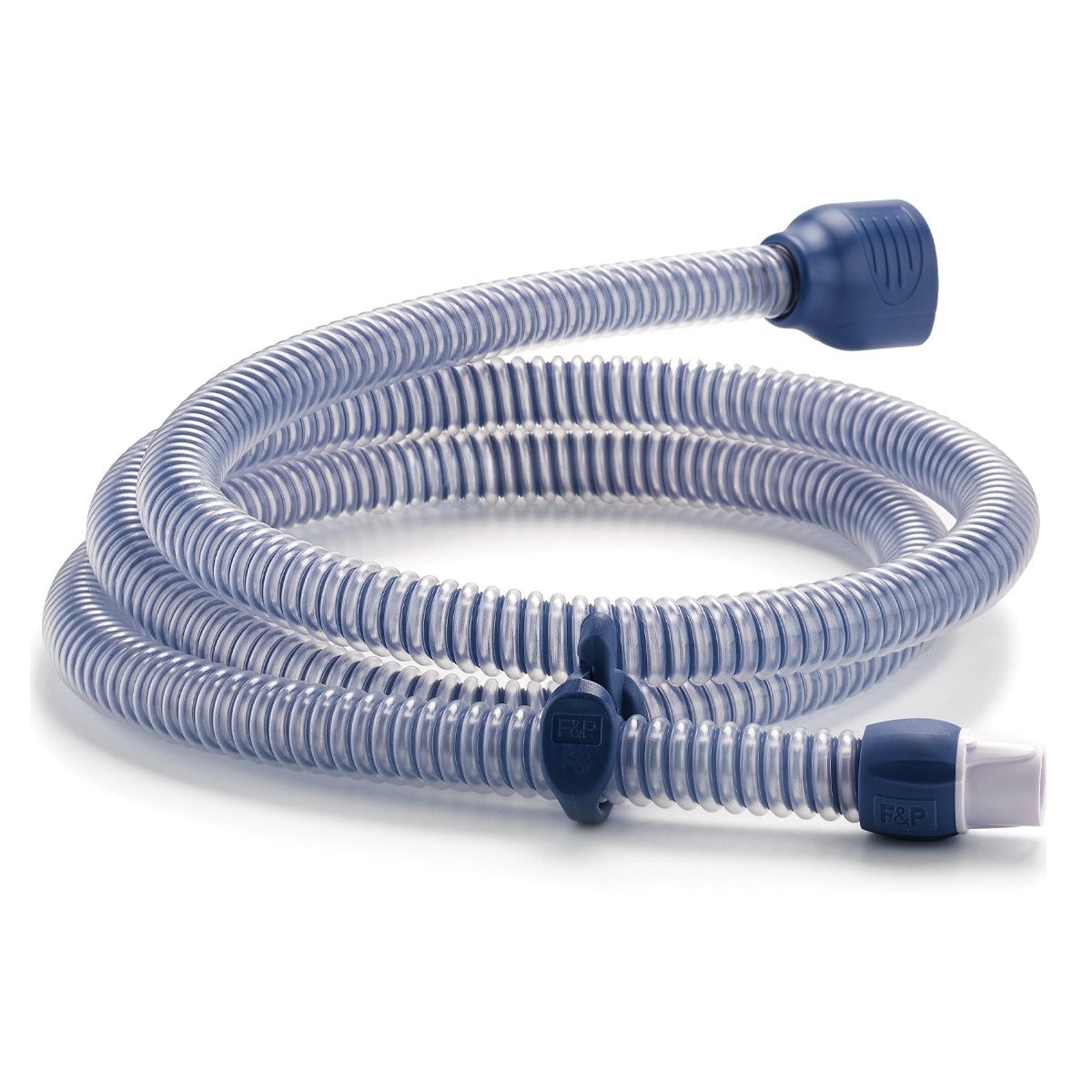

Airvo AirSpiral Heated Breathing Kit

Airvo AirSpiral Heated Breathing Kit

Regular price $164.95 USD
Regular price Sale price $164.95 USD
Sale Sold out
Shipping calculated at checkout.

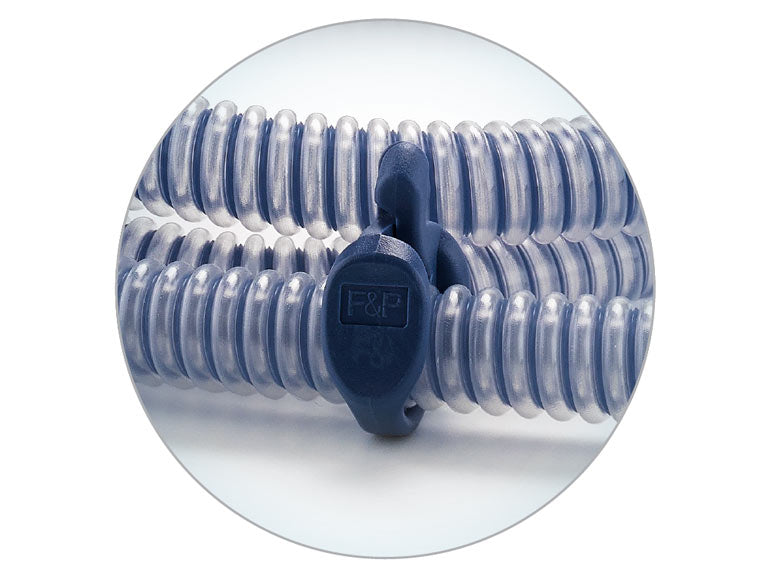

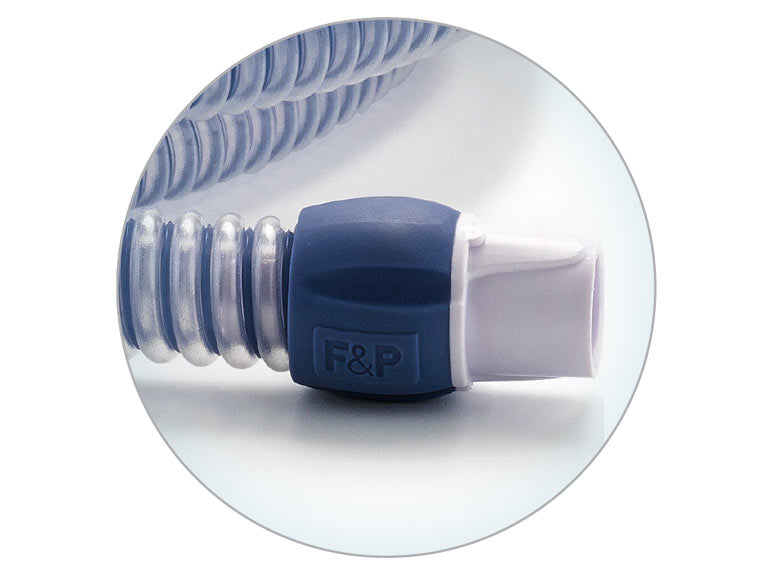

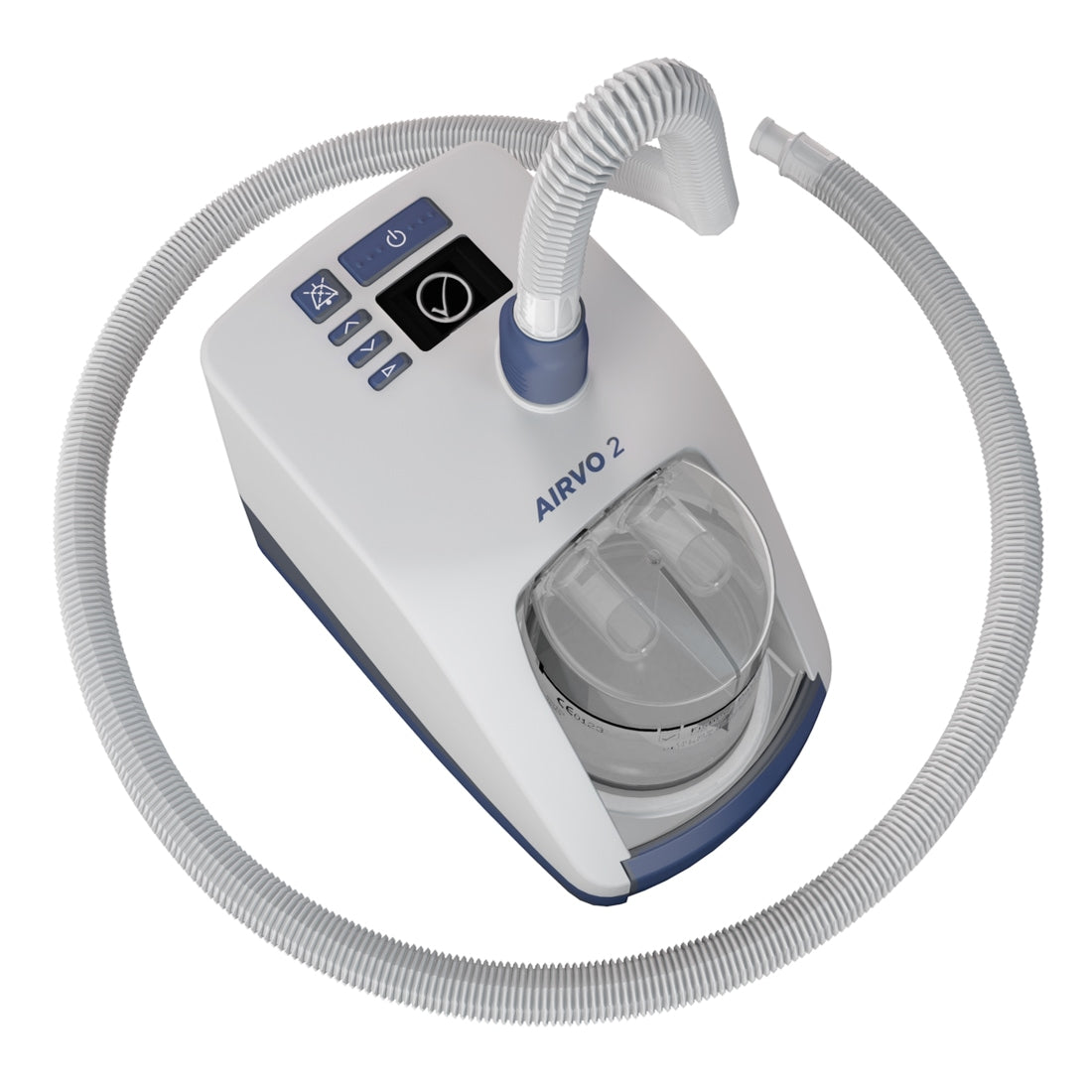

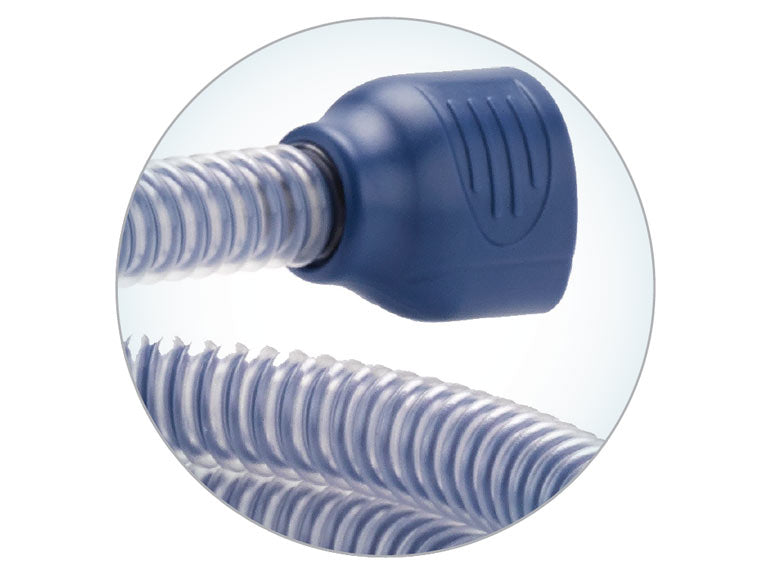

The new AirSpiral tube for Airvo 2 utilizes an advanced two-spiral design to protect against condensate. The heating spiral contains fine heater wires to gently and accurately warm the breathing gas inside the tube. The insulating spiral uses a bubble of warmed air around the breathing gas to shield it from the outside environment. Like a double-paned window, the inside and outside surfaces of the tube are physically separated, to reduce cooling and ensure that the humidity remains in the gas all the way to the patient.

Features and Benefits


The Oscillation therapy feature delivers an oscillatory therapy based on frequency and amplitude settings. Use of the oscillation feature enhances mobilization, and improves bronchial drainage.

Inspiratory Trigger

An important characteristic of the device is its ability to trigger on the patient's inspiration to help synchronize the therapy with the patient. The inspiratory trigger feature is available when the device is in Auto mode, and the pressure delivery sequence is synchronized with the patient's effort to inhale.

Inspiratory Flow

The inspiratory flow may be controlled to a comfortable level by selecting the flow between low, medium, and high. In contrast, the expiratory switching is desired to be fast and high-flow to simulate a natural cough.

Positive Airway Pressure on the Pause Phase

This feature provides the option to keep airways open in-between the exhalation and inhalation phases of the cycle cough, designed to make therapy more comfortable for the patient.

Performance Specifications

Operating Temperature: 40° to 95° F (5C to 35C)

Relative Humidity: 15 to 95% (non condensing)

Size: 27 cm L x 23.5 cm W x 9.0 cm H (10.5″ L x 9.2″ W x 3.5″ H)

Weight: 9lbs (4kg) including internal battery

Presets: Up to 10

Modes: Automatic and Manual

Maximum Positive Pressure: 70cm H20

Maximum Negative Pressure: -70cm H20

Maximum Pause Pressure: 15cm H20

Inspiratory Time: 0 - 5 seconds (auto mode only)

Expiratory Time: 0 - 5 seconds (auto mode only)

Pause Time: 0 - 5 seconds (auto mode only)

Inspiratory Flow: Low, Medium, High

Inspiratory Trigger Sensitivity: 1 - 10

Oscillation Frequency: 5 - 20 Hz

Amplitude: 1 - 5
